SMART DESK IPC A15

A15 is a compact touch panel pc equipped with optional CPU, RAM and SSD, Industrial LED display and multi-touch glass sensor. It designed with IP65-rated front panel and back cover that protects against water and dust ingress. A15 panel pc supports various OS including Linux and Windows to ensure easy deployment for diverse applications, which makes it ideal for POS, Digital signage, KIOSK Terminal.

About this item:

❯ Available sizes 15.6”

❯ Optional CPU Intel Celeron Dual/Quad core, i3/i5/i7

❯ 10 points touch screen

❯ Optional RAM and SSD

❯ Can be embedded or Vesa mount

❯ Optional OS Windows/Ubuntu

    Product Description



    System Kernel
    CPU Available in Intel Celeron Dual Core/Quad-core, Intel i3/i5/i7 (8th to 10th Gen.)
    RAM Up to 8GB DDR3 (Celeron Dual Core/Quad Core)
    Up to 16GB DDR4 {Intel i3/i5/i7 (8th to 10th Gen.)}
    SSD Up to 512GB
    OS Support Windows/Ubuntu

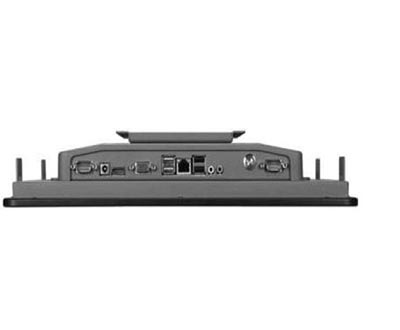

    Interface(Depends on the motherboard
    Standard
    1*12V DC_JACK input
    1*VGA,1*HDMI
    1*Audio input& output
    4*USB(Upgradable)
    1*RJ45(Upgradable)
    1*RS232(Upgradable)
    Optional I/ORS485, LPT, Phoenix terminal(Replace DC)
    Optional peripheralsCamera, SPK, Sensor, NFC, RFID, Fingerprint recognition module
    LED Display
    Interface Type LVDS
    Panel size15.6’’
    Max. Resolution 1024*768
    Max. Colors 16.7M (6-bit+Hi-FRC)
    Brightness 350nits
    Viewing Direction Full Viewing
    TreatmentAnti-Glare
    Aspect Ratio 4:3
    Touchscreen
    Touch points10 points
    Type 4 Capacitive Touch
    General
    CertificationCE,FCC,ROHS,

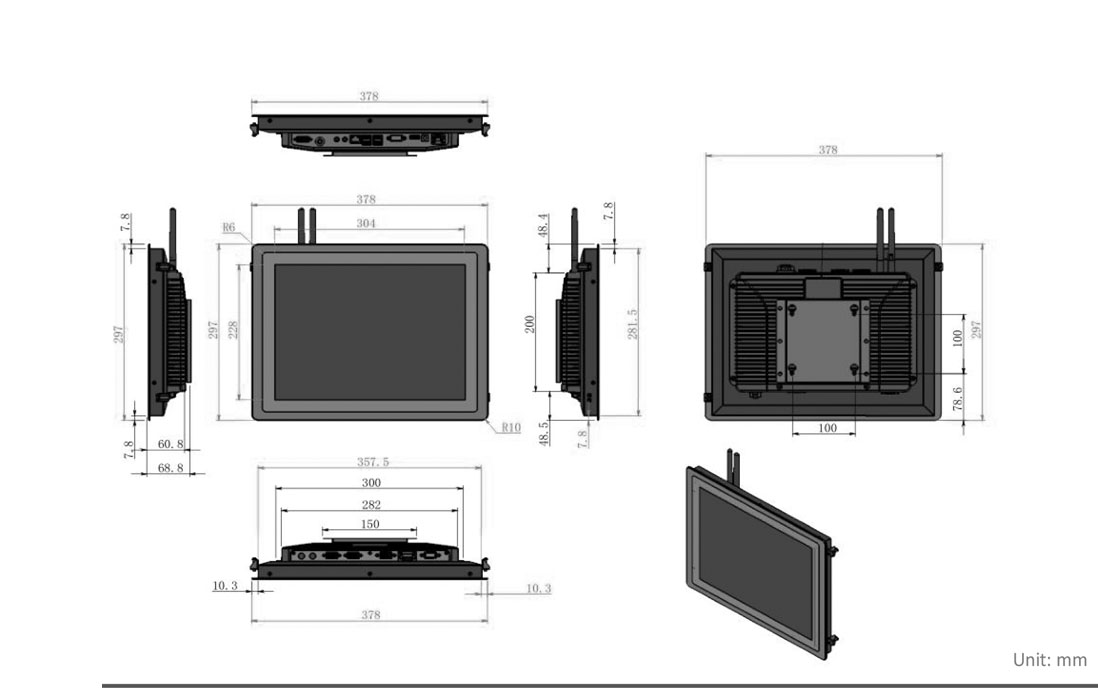

    Dimensions 378*297*60.8mm
    Power InputAC100-240V.50-60HZ
    Power Output DC12V 2A~5A
    Mount OptionWall Mount/Embedded Vesa Mount/Vertical Stand
    Weight (Net) 7.5kg
    Environment
    Operation Temperature-20 ~ 700C
    Storage Temperature -10 ~ 60
    Operation Humidity10% ~ 80%
    Storage Humidity 10% ~ 90%

Multi-touch Technology

SmartDesk manufactured multi-touch sensors in order to meet the high demands with regard to mechanical stability, harsh industrial environmental conditions, precise operation and elegant design.

Perfectly Matched PC Hardware

Rich inputs and outputs interface. Industrial PC comes with a series of interfaces, such as LAN, COM, HDMI, USB, WIFI, etc.

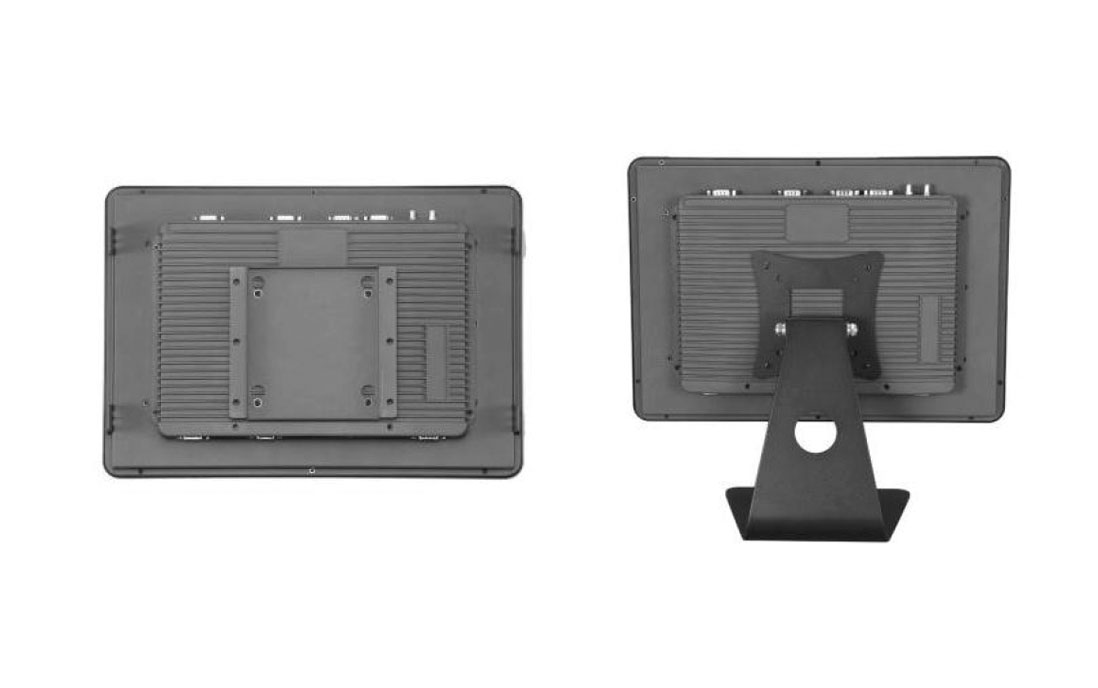

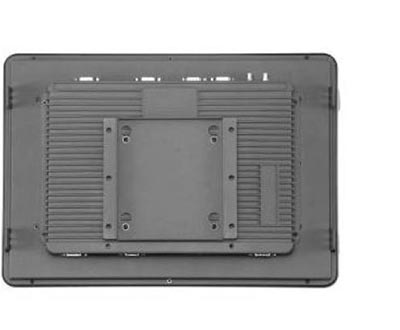

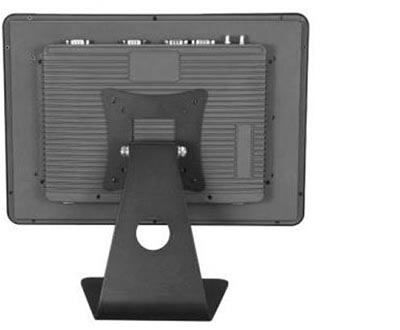

Easy Installation

With dual mounting options of Wall mount/ Embedded and Vesa mount/Vertical stand SmartDesk touch panel PC can be easily installed. It can be placed on a desk or can be mounted on a wall as per your preference.
