SMART DESK OPS FAT

SmartDesk brings you the most modern, reliable low power, yet high performance OPS.

About this item:

❯ Available in i3, i5 and i7

❯ Up to 32GB DDR4 RAM

❯ Supports up to 2TB HDD or SSD, 512 GB msata

❯ HD Graphics

❯ 80pin-Standard OPS port


Product Description:

SmartDesk OPS feature an 80-pin connector that supports various signal formats and integrates multiple interfaces, including the power, display, video and audio systems, touch screen, and peripheral ports, for a truly innovative “slot-in” system design. Smart OPS is extremely suitable for deployment in conference rooms, classrooms, shopping malls, and other retail sites, e-classrooms.

    Product Description



    Processor CPU Available in Intel i3/i5/i7 (8th to 10th Gen.)
    Memory Size RAM 1x SO-DIMM DDR4L Slot Support upto 32GB
    Storage SSD/HHD 1x 2.5" SATA HDD or SSD (Expandable up to 2TB)
    Msata1x mSATA SSD
    OPS Connector 1x 80 Pin JAE
    Display Interface 1x VGA , 1x HDMI or 1x DP
    GraphicsIntel® HD Graphics
    I/O Ports
    USB 2 x USB 3.0, 2 x USB 2.0
    Audio 1x Audio In, 1x Audio Out
    Power 1x DC Power In, 1x Power Switch
    WiFi 1x Mini PCI Slot for WiFi
    Networking LAN 1x 10/100/1000 Mbps LAN
    WLAN1x Dual Band Wi-Fi Module ( Optional)
    OS Support Embedded Windows 10 IOT
    LinuxUbuntu, Cent OS, RED HAT, SUSE Linux
    WindowsWindows 7 or Higher Version
    Operating Temp.   -200 to +850
    Size Unit 180x120x30 mm
    Body Type   Aluminum Alloy Shell Body
    Power Adapter   External 12V-3A Consumption : 36W
    Power   19V/3.42A 65W(∮5.5mm*2.5mm power connector)
    In the box   OPS and Power Supply
    Warranty   1 Year Warranty (additional warranty can be purchased separately for upto 5 years)
    6 Months Adaptor Warranty.

Single connector for EVRYTHING

The SmartDesk OPS System connects to your big screen or interactive display via a single 80 pin connector that carries power and all communication between the PC and your display.

Streamlined, Cost Saving Deployments

The SmartDesk OPS System makes the deployment of many different large display solutions so much easier than usual. The simplicity of this solution means installation and setup are much quicker. The need for additional items such as cables and trunking are eliminated or greatly reduced.

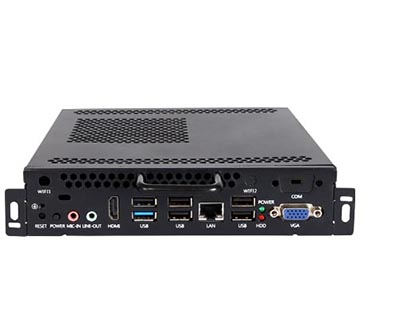

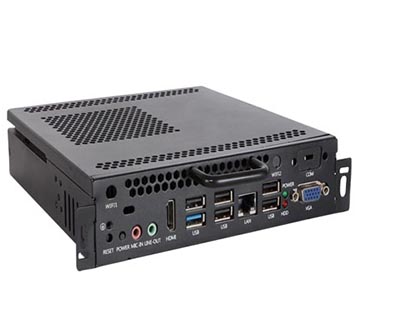

External connectivity

As well as connecting to your big screen/ interactive flat panel, the SmartDesk OPS Slim System has the usual set of ports that you would expect of a normal desktop PC: HDMI & VGA Port, USB 2.0 and 3.0, Dual band Wifi, Giga- Bit Ethernet.
