SD Interm 2LAN | Firewall

SD Interm 2LAN Firewall

Medium Business SMB Network Firewall Appliance

About this item:

❯ Medium business can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server with optional packages to deliver high performance.

❯ WAN/LAN Configuration: LAN2 to LAN5 can be configured as WAN or LAN functions, to achieve different broadband overlay.

❯ Dual Core CPU: Mini-ITX motherboard with Intel Celeron N2830 processor which uses DDR3L RAM and mSATA SSD sockets with flexible memory capacity to satisfy computing needs.

❯ Fanless Passive Cooling: All aluminium body of the PC works as a radiator, offering zero noise and lower heat generation with less power consumption which is eco-friendly and more economical.

System Kernel
CPU	Available in Intel Celeron N2830 (2 core 2 threads, 1M Cache, 2.16 GHz,
RAM	Up to 8GB DDR3
Storage	SSD:1*Full Height mSATA socket,16GB/30GB/60GB/120GB/240GB/500GB mSATA HDD:Support SATA2.5" HDD
OS Support	7/8/10/ubuntu/LINUX/CENTOS / LEDE /ESXI6.7 etc. Notice: we pre-install Win7/8/10 OS for testing only,
Wifi Connectivity	With dual antennas, 300M,802.11.b/g/n (Optional)

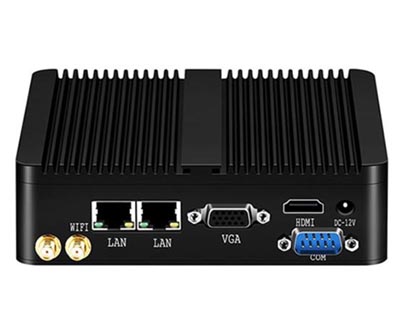

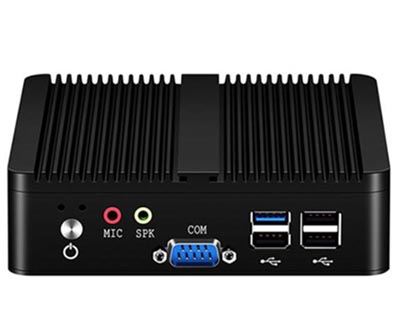

I/O
1 * USB 3.0
1 * USB 2.0
1 * HDMI
1 * VGA
2 * Rj45
2 * RS232 Com port
Audio	Adopting Realtek ALC662 Chip, Supports dual channels, stereo, and Line out
Mini-PCIe	C1* Half Height Mini PCIE
Fan	Fanless Passive cooling with Heat Sink Aluminum Block
Power Adapter	1DC 12V 5A/60W(AC TO DC,100~240V)
Power Type	DC-IN 5.5*2.5
Case Material	Aluminum Alloy
Device Size	136x136x39mm
Weight	1.5Kg
Installation	VESA/Wall/Desktop
Operating Temperature	-20 C~ 65 C
Storage Temperature	15- 35 C
Operating Humidity	5%-95% Relative humidity, no condensation
Warranty	1 Year Warranty (additional warranty can be purchased separately)
In the box	Mini PC, Power Supply and VESA Mount Bracket

System Kernel

CPU

Available in Intel Celeron N2830 (2 core 2 threads, 1M Cache, 2.16 GHz,

RAM

Up to 8GB DDR3

Storage

SSD:1*Full Height mSATA socket,16GB/30GB/60GB/120GB/240GB/500GB mSATA HDD:Support SATA2.5" HDD

OS Support

7/8/10/ubuntu/LINUX/CENTOS / LEDE /ESXI6.7 etc.
Notice: we pre-install Win7/8/10 OS for testing only,

Wifi Connectivity

With dual antennas, 300M,802.11.b/g/n (Optional)

I/O

1 * USB 3.0

1 * USB 2.0

1 * HDMI

1 * VGA

2 * Rj45

2 * RS232 Com port

Audio

Adopting Realtek ALC662 Chip, Supports dual channels, stereo, and Line out

Mini-PCIe

C1* Half Height Mini PCIE

Fan

Fanless Passive cooling with Heat Sink Aluminum Block

Power Adapter

1DC 12V 5A/60W(AC TO DC,100~240V)

Power Type

DC-IN 5.5*2.5

Case Material

Aluminum Alloy

Device Size

136x136x39mm

Weight

1.5Kg

Installation

VESA/Wall/Desktop

Operating Temperature

-20 C~ 65 C

Storage Temperature

15- 35 C

Operating Humidity

5%-95% Relative humidity, no condensation

Warranty

1 Year Warranty (additional warranty can be purchased separately)

In the box

Mini PC, Power Supply and VESA Mount Bracket

Multi-touch Technology

SmartDesk manufactured multi-touch sensors in order to meet the high demands with regard to mechanical stability, harsh industrial environmental conditions, precise operation and elegant design.

Perfectly Matched PC Hardware

Rich inputs and outputs interface. Industrial PC comes with a series of interfaces, such as LAN, COM, HDMI, USB, WIFI, etc.

Easy Installation

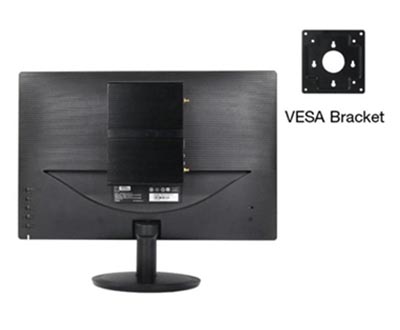

With dual mounting options of Wall mount/ Embedded and Vesa mount/Vertical stand SmartDesk touch panel PC can be easily installed. It can be placed on a desk or can be mounted on a wall as per your preference.

For sales or technical support, please call or whats app us at +91 84485 89532
