SD Interm Plus 4LAN Firewall

SMALL IN SIZE BUT POWERFUL IN PERFORMANCE

About this item:

❯ Intel processor - Pre-installed with Windows 10 Pro 32bit and also support windows7/8/linux/Ubuntu/CENTOS/LEDE/ESXI 6.7 etc. Intel N2940 quad core Processor with Intel HD Graphics, Support auto power on, wake on lan and PXE boot

❯ Rich I/O Ports – This mini pc support 2*Gigabit Ethernet with stable and high speed. Good compatibility for soft routing, firewall and other network applications. I/O Interface: 1*HDMI, 1*VGA, 1*USB3.0, 3*USB2.0, 4*RJ45 LAN, 1*DC IN, 1*MIC, 1*SPK.

❯ Portable and Silent - Equipped with a mounting bracket can be easily fixed to the back of the monitor and which is space saving. It uses fan less passive cooling design, low power consumption to save energy and zero noise.


    Product Description



    Processor Intel Bay Trail Celeron™ Processor N2940, FCBGA1170 Quad-core,4 threads, 1.83~2.25 GHz frequency
    Memory Size Upto 8GB DDR3 RAM
    Wifi Connectivity 802.11 b/g/n, 2.4/5.8 Dual Band Ghz (Optional)
    Ethernet10/100/1000 Mbps
    Storage Slot1 x 2.5 HDD (Upto 4 TB) and 1 x MSATA (Upto 1 TB)

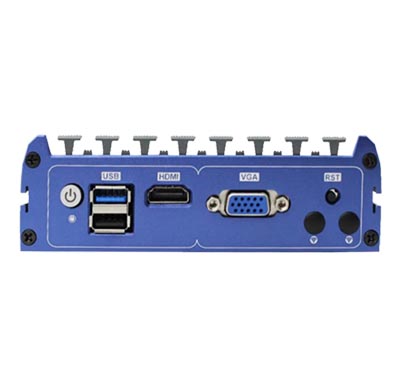

    I/O Ports1 x USB 3.0
    1 x USB 2.0
    1 x VGA
    1 x HDMI

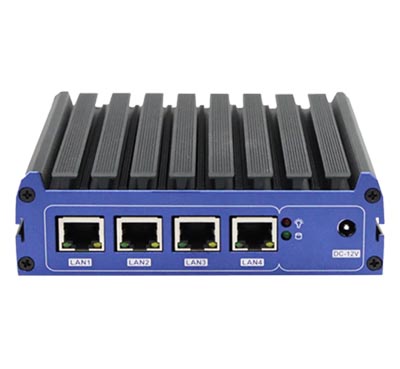

    4 x Rj45 (Gigabit LAN Port )
    1 x 3.5mm Microphone Jack
    1 x 3.5mm Speaker Jack
    1 x Power Button
    1 x DC in
    AudioAdopting Realtek ALC662 Chip, Supports dual channels, stereo, and Line out
    Case Material1* Aluminum Alloy
    Cooling system Cooling fan
    Device Size135x135x35mm
    Weight0.6 Kg
    Power12V/5A
    In the box Device, Power Supply and VESA Mount Bracket
    Case Material Aluminum Alloy
    Warranty 1 Year Warranty (additional warranty can be purchased separately for upto 5 Years),
    6 Months Adaptor Warranty.
    Supported Operating SystemWindows 7/8/10/11(Pro./Home/IOT/Ulimate),
    ubuntu/LINUX/CENTOS/LEDS/ESXI 6.7 etc.
    Notice: we pre-install Win7/8/10 OS for testing only,
