SD Interm 4LAN | Firewall

SD Interm 4LAN Firewall

SMALL IN SIZE BUT POWERFUL IN PERFORMANCE

About this item:

❯ Intel processor - Pre-installed with Windows 10 Pro 32bit and also support windows7/8/linux/Ubuntu/CENTOS/LEDE/ESXI 6.7 etc. IIntel Celeron N2830/N2840 dual core Processor with Intel HD Graphics, Support auto power on, wake on lan and PXE boot

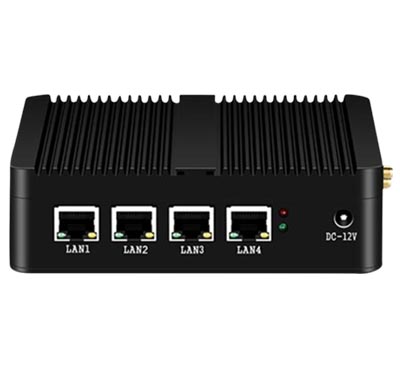

❯ Rich I/O Ports – This mini pc support 4*Gigabit Ethernet with stable and high speed. Good compatibility for soft routing, firewall and other network applications. I/O Interface: 1*HDMI, 1*VGA, 1*USB3.0, 3*USB2.0, 4*RJ45 LAN, 1*DC IN, 1*MIC, 1*SPK.

❯ Portable and Silent - Equipped with a mounting bracket can be easily fixed to the back of the monitor and which is space saving. It uses fan less passive cooling design, low power consumption to save energy and zero noise.

Processor	Intel Celeron N2830/N2840 (2 core 2 threads, 1M Cache, 2.16 GHz, up to 2.41 Ghz)
Memory Size	Upto 8GB DDR3 RAM
Wifi Connectivity	802.11 b/g/n, 2.4/5.8 Dual Band Ghz (Optional)
Ethernet	10/100/1000 Mbps
Storage Slot	1 x 2.5 HDD (Upto 4 TB) and 1 x MSATA (Upto 1 TB)
I/O Ports	1 x USB 3.0
1 x USB 2.0
1 x VGA
1 x HDMI
4 x Rj45
1 x Power Button
1 x DC in
Audio	No
Mini-PCIe	1* Half Height Mini PCIE
Fan	Fanless Passive cooling with Heat Sink Aluminum Block
Device Size	136x136x39mm
Weight	1.5 Kg
Power	12V/5A
In the box	Device, Power Supply and VESA Mount Bracket
Case Material	Aluminum Alloy
Warranty	1 Year Warranty (additional warranty can be purchased separately for upto 5 Years), 6 Months Adaptor Warranty.
Supported Operating System	Windows 7/8/10/11(Pro./Home/IOT/Ulimate), ubuntu/LINUX/CENTOS/LEDS/ESXI 6.7 etc. Notice: we pre-install Win7/8/10 OS for testing only,

Processor

Intel Celeron N2830/N2840 (2 core 2 threads, 1M Cache, 2.16 GHz, up to 2.41 Ghz)

Memory Size

Upto 8GB DDR3 RAM

Wifi Connectivity

802.11 b/g/n, 2.4/5.8 Dual Band Ghz (Optional)

Ethernet

10/100/1000 Mbps

Storage Slot

1 x 2.5 HDD (Upto 4 TB) and 1 x MSATA (Upto 1 TB)

I/O Ports

1 x USB 3.0

1 x USB 2.0

1 x VGA

1 x HDMI

4 x Rj45

1 x Power Button

1 x DC in

Audio

Mini-PCIe

1* Half Height Mini PCIE

Fan

Fanless Passive cooling with Heat Sink Aluminum Block

Device Size

136x136x39mm

Weight

1.5 Kg

Power

12V/5A

In the box

Device, Power Supply and VESA Mount Bracket

Case Material

Aluminum Alloy

Warranty

1 Year Warranty (additional warranty can be purchased separately for upto 5 Years),
6 Months Adaptor Warranty.

Supported Operating System

Windows 7/8/10/11(Pro./Home/IOT/Ulimate),
ubuntu/LINUX/CENTOS/LEDS/ESXI 6.7 etc.
Notice: we pre-install Win7/8/10 OS for testing only,

Durability & reliability you can trust

SmartDesk Rugged is tested for uneven conditions including more than 100 quality checks to ensure it can run in extreme conditions, that includes harsh environments, so you’ll get an extraordinary machine.

Totally versatile, totally practical

With its sleek form, the SmartDesk Rugged is ideal for any modern workspace. Whether it's in an office, healthcare, or retail environment. It can also live anywhere-on a desk or mounted behind your monitor, up on a wall.

Small yet full of possibilities

The SmartDesk Rugged is full of enterprise-grade level power, speed, and potential. Thanks to its Celeron Quad Core processors, this compact PC gives you high performance in the smallest of workspaces.

For sales or technical support, please call or whats app us at +91 84485 89532
