SD OPS Slim | Mini PC

For sales or technical support, please call or whats app us at +91 84485 89532

SMART DESK OPS Slim

SmartDesk brings you the most modern, reliable low power, yet high performance OPS.

About this item:

❯ Available in i3, i5 and i7

❯ Up to 16GB DDR4 RAM

❯ Supports up to 2TB HDD or SSD, 512 GB msata

❯ HD Graphics

❯ 80pin-Standard OPS port

Product Description:

SmartDesk OPS feature an 80-pin connector that supports various signal formats and integrates multiple interfaces, including the power, display, video and audio systems, touch screen, and peripheral ports, for a truly innovative “slot-in” system design. Smart OPS is extremely suitable for deployment in conference rooms, classrooms, shopping malls, and other retail sites, e-classrooms.

Product Description

I/O Ports
Processor	CPU	Available in Intel i3/i5/i7 (8th to 10th Gen.)
Memory Size	RAM	1x SO-DIMM DDR4L Slot Support upto 32GB
Storage	SSD/HHD	1x 2.5" SATA HDD or SSD (Expandable up to 2TB)
Storage	Msata	1x mSATA SSD
OPS	Connector	1x 80 Pin JAE
Display	Interface	1x VGA , 1x HDMI or 1x DP
Display	Graphics	Intel® HD Graphics
	USB	2 x USB 3.0, 2 x USB 2.0
	Audio	1x Audio In, 1x Audio Out
	Power	1x DC Power In, 1x Power Switch
	WiFi	1x Mini PCI Slot for WiFi
Networking	LAN	1x 10/100/1000 Mbps LAN
Networking	WLAN	1x Dual Band Wi-Fi Module ( Optional)
OS Support	Embedded	Windows 10 IOT
	Linux	Ubuntu, Cent OS, RED HAT, SUSE Linux
	Windows	Windows 7 or Higher Version
Operating Temp.		-20⁰ to +85⁰
Size	Unit	180x120x30 mm
Body Type		Aluminum Alloy Shell Body
Power Adapter		External 12V-3A Consumption : 36W
Power		19V/3.42A 65W(∮5.5mm*2.5mm power connector)

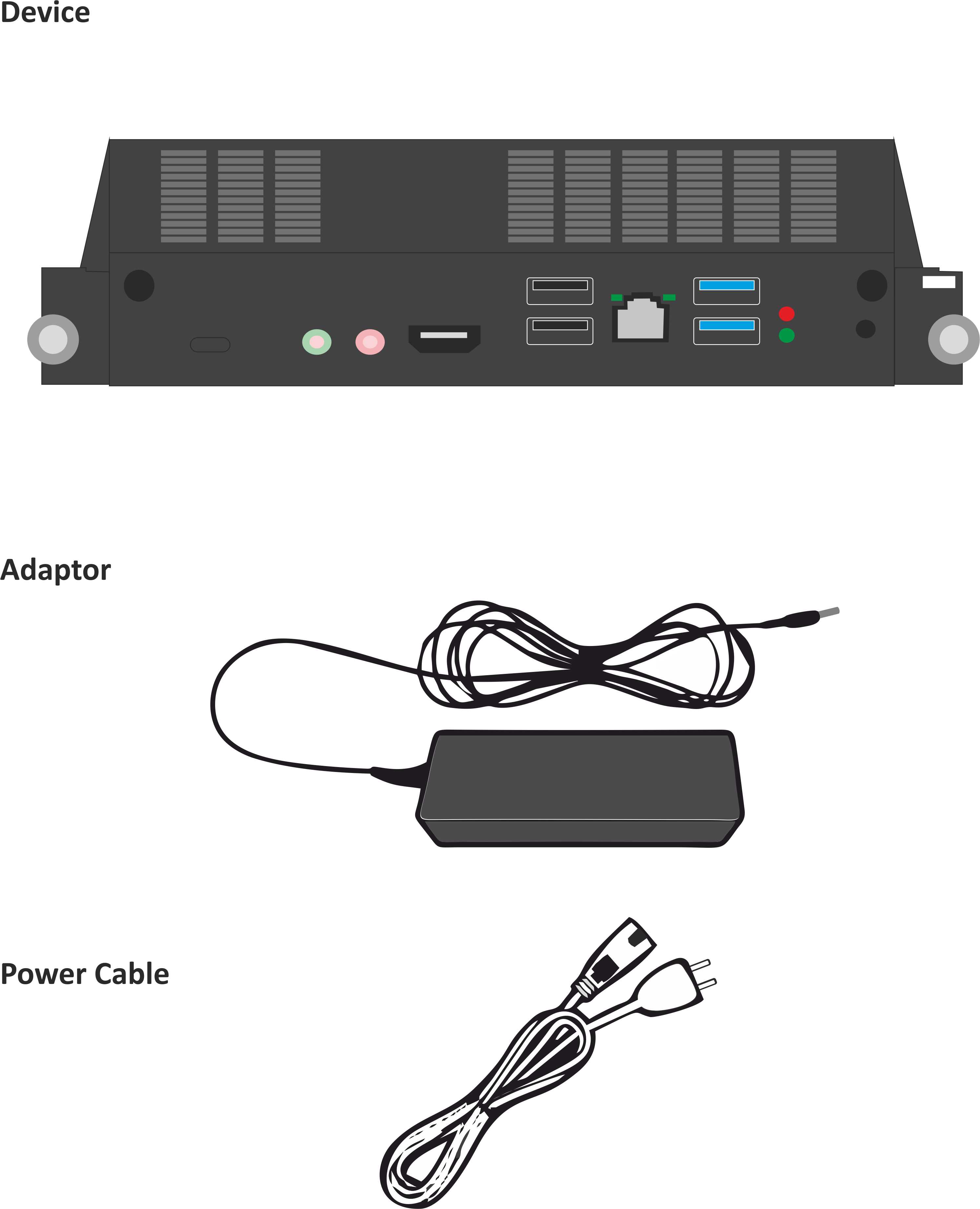

In the box		OPS and Power Supply
Warranty		1 Year Warranty (additional warranty can be purchased separately for upto 5 years) 6 Months Adaptor Warranty.

Single connector for EVRYTHING

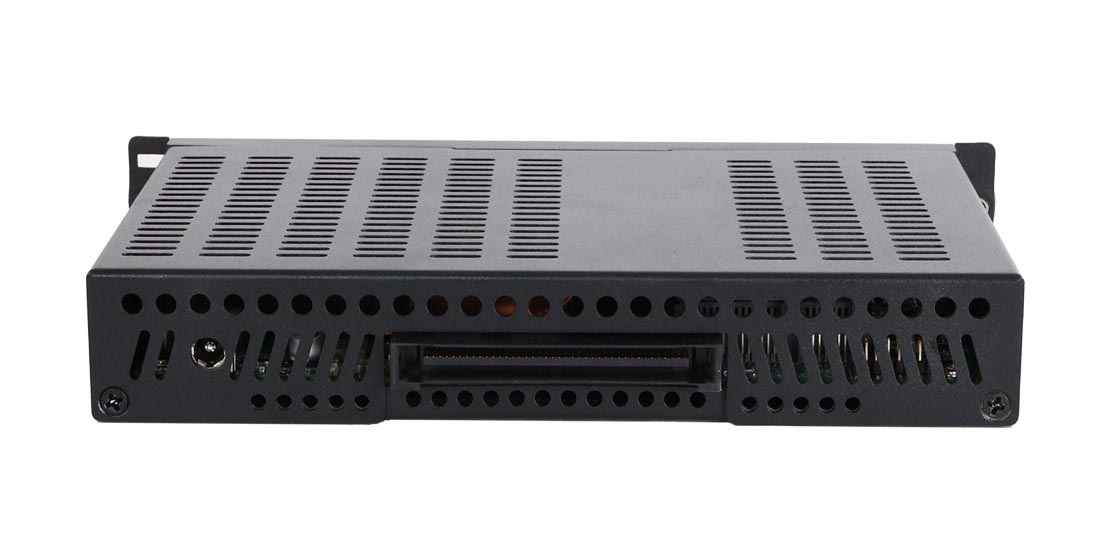

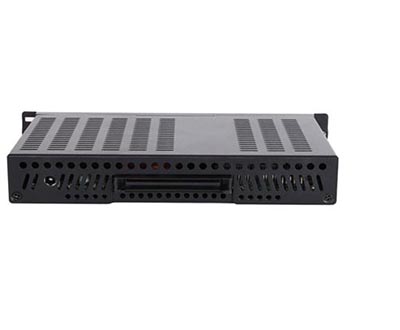

The SmartDesk OPS System connects to your big screen or interactive display via a single 80 pin connector that carries power and all communication between the PC and your display.

Streamlined, Cost Saving Deployments

The SmartDesk OPS System makes the deployment of many different large display solutions so much easier than usual. The simplicity of this solution means installation and setup are much quicker. The need for additional items such as cables and trunking are eliminated or greatly reduced.

External connectivity

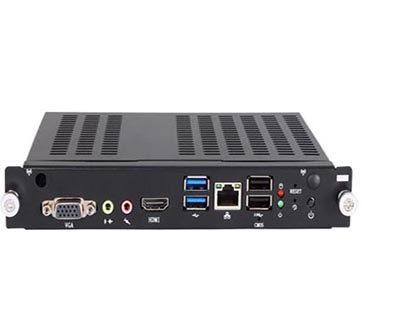

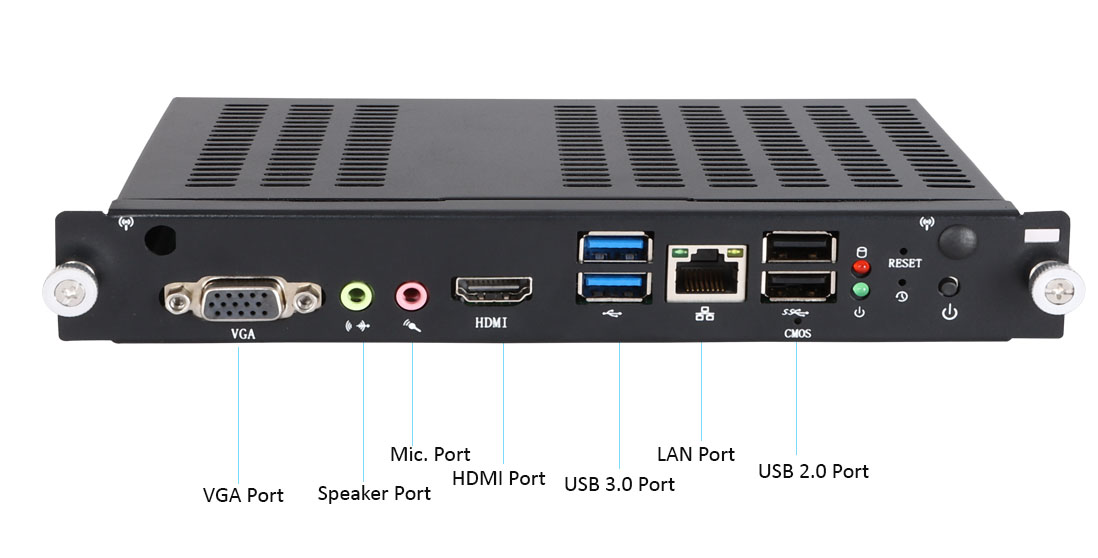

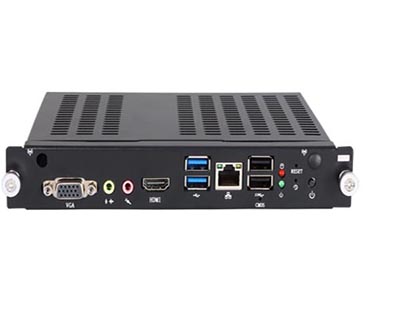

As well as connecting to your big screen/ interactive flat panel, the SmartDesk OPS Slim System has the usual set of ports that you would expect of a normal desktop PC: HDMI & VGA Port, USB 2.0 and 3.0, Dual band Wifi, Giga- Bit Ethernet.
